TERMINAL BLOCKS
PLUG and SOCKET Ter. Block

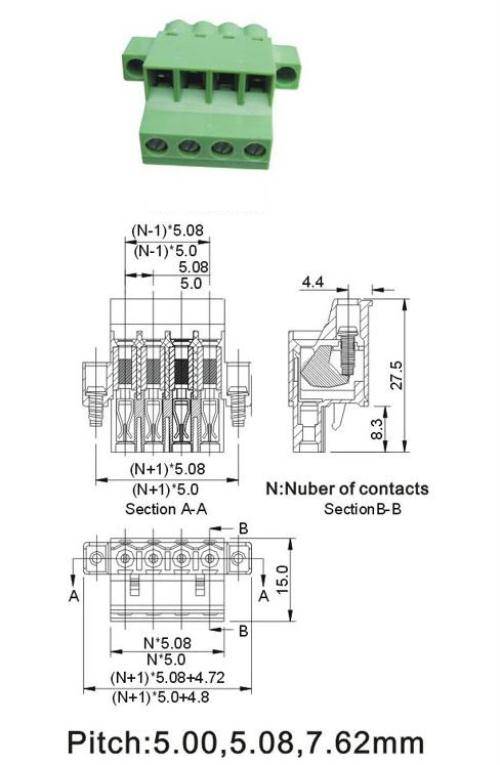

KF203M-5.0/ 5.08/ 7.62-XX
Pitch : 5.00, 5.08, 7.62mm
MATERIAL :
Screws M2.5 Steel Zinc plated
Contact Phosphor bronze
Housing PA66, UL94V - 0
ELECTRICAL :
Rated voltage 300V
Rated Current 15A.
Contact resistance 20mOhm
Insulation resistance 5000Mohm/1000V
Withstanding Voltage AC1500/1Min.
Wire range 28 - 12AWG 2.5mm2
MECHANICAL :
Temp. Range - 40C to +105C
Max. Soldering +250C for 5 sec.
Torque 0,4Nm (3.6lb.in)
Strip Lenght 7 - 8mm
